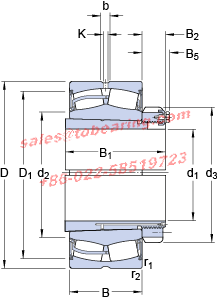

d₁ - 240 mm

D - 440 mm

B - 144 mm

d₂ - - 293 mm

d₃ - 310 mm

D₁ - - 398 mm

B₁ - 190 mm

B₂ - 34 mm

B₅ - 46 mm

b - 16.7 mm

K - 9 mm

r_1,2 - min. - 4 mm

d_a - max. - 293 mm

d_b - min. - 276 mm

D_a - max. - 423 mm

B_a - min. - 11 mm

r_a - max. - 3 mm

Basic dynamic load rating - C - 2668 kN

Basic static load rating - C₀ - 3900 kN

Fatigue load limit - P_u - 290 kN

Limiting speed - 320 r/min

Calculation factor - e - 0.3

Calculation factor - Y₁ - 2.3

Calculation factor - Y₂ - 3.4

Calculation factor - Y₀ - 2.2

• Model Number:23152-2CS5K/VT143 + OH 3152 HTL
• Inner Diameter：440mm Outer Diameter：240mm Width：144mm
• Type：Tapered Roller Bearings
• Update date：2025-12-11
• Application:Ball screw,building decoration raw materials and accessories,walking Food processing machinery and equipment,Forming mold,product accessories,electromagnetic clutch,internal combustion engine,Internal thread type,Gear grinding machine,medical equipment,natural instruments
• Similar models:NTN 323152 SKF 23152-2CS5K/VT143+OH3152HTL NTN 423152
• BEARING POWER International Trading Co.,Ltd. specialize in 23152-2CS5K/VT143+OH3152HTL products，there is large inventory of SKF 23152-2CS5K/VT143 + OH 3152 HTL . We has been built up long-term cooperation with SKF company, could make a bulk order of the 23152-2CS5K/VT143 + OH 3152 HTL Which SKF 23152-2CS5K/VT143+OH3152HTL is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
