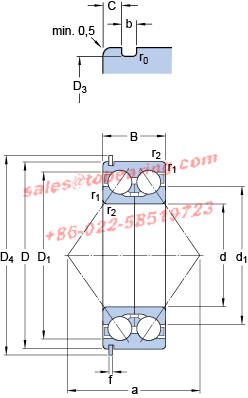

d - 45 mm

D - 100 mm

B - 39.7 mm

d₁ - - 67.95 mm

D₁ - - 86.53 mm

D₃ - 96.8 mm

D₄ - 106.5 mm

C - 3.28 mm

b - 2.7 mm

f - 2.46 mm

r₀ - max. - 0.6 mm

r_1,2 - min. - 1.5 mm

a - 79 mm

d_a - min. - 54 mm

r_a - max. - 1.5 mm

Basic dynamic load rating - C - 61.8 kN

Basic static load rating - C₀ - 52 kN

Fatigue load limit - P_u - 2.2 kN

Reference speed - 6000 r/min

Limiting speed - 6300 r/min

Calculation factor - k_r - 0.095

Calculation factor - e - 1.14

Calculation factor - X - 0.57

Calculation factor - Y₀ - 0.52

Calculation factor - Y₁ - 0.55

Calculation factor - Y₂ - 0.93

Mass bearing - 1.5 kg

• Model Number:3309 DNRCBM
• Inner Diameter：100mm Outer Diameter：45mm Width：39,7mm
• Type：Angular Contact Ball Bearings
• Update date：2023-03-05
• Application:lathe,ship special,printing machinery,Insect Count,Antenna Potentials,injection molding machine,marine analysis and testing equipment,Switch,machining,Hydraulic Couplings,metallurgical mold
• Similar models:ISB 3309ATN9 SNR 3309A FAG 3309-B-TVH CYSD 3309 SIGMA 3309D CRAFT 3309 FAG 3309-BD-2HRS-TVH ISB 3309-2RS SIGMA 3309 NKE 3309-B-TV
• BEARING POWER International Trading Co.,Ltd. specialize in 3309DNRCBM products，there is large inventory of SKF 3309 DNRCBM . We has been built up long-term cooperation with SKF company, could make a bulk order of the 3309 DNRCBM Which SKF 3309DNRCBM is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
