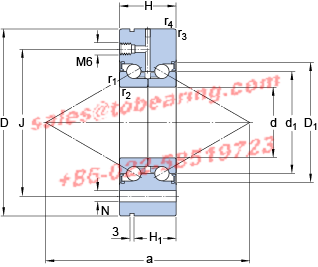

d - 20 mm

D - 68 mm

H - 28 mm

d₁ - 34.5 mm

D₁ - 44 mm

H₁ - 19 mm

r_1,2 - min. - 0.3 mm

r_3,4 - min. - 0.6 mm

a - 74 mm

J - 53 mm

H - 6.8 mm

d_a - min. - 25 mm

D_a - max. - 44 mm

r_a - max. - 0.6 mm

Basic dynamic load rating - C - 26 kN

Basic static load rating - C₀ - 46.5 kN

Fatigue load limit - P_u - 1.7 kN

Limiting speed - 6000 r/min

Preload - 1650 N

Frictional moment - 0.15 N·m

Static Axial rigidity - 650 N/micron

Mass bearing - 0.61 kg

Required attachment bolt size - M6

Number of attachment bolts - 8

• Model Number:BEAM 020068-2RZ/PE
• Inner Diameter：20mm Outer Diameter：68mm Width：28mm
• Type：Thrust Ball Bearings
• Update date：2023-03-08
• Application:car,Spectrum Products,Pneumatic Control Valves,natural instruments,wall industry,multi-knife lathe,chemical instruments,safety testing,sample cup,Rolling mill,trolley
• Similar models:SKF BEAM020068-2RZ SKF BEAM020068-2RS/PE SKF BEAM020068-2RZ/PE SKF BEAM020068-2RS
• BEARING POWER International Trading Co.,Ltd. specialize in BEAM020068-2RZ/PE products，there is large inventory of SKF BEAM 020068-2RZ/PE . We has been built up long-term cooperation with SKF company, could make a bulk order of the BEAM 020068-2RZ/PE Which SKF BEAM020068-2RZ/PE is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
