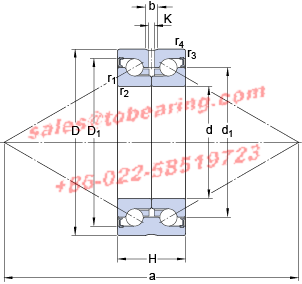

d - 17 mm

D - 47 mm

H - 25 mm

d₁ - 30 mm

D₁ - 38 mm

b - 3.1 mm

K - 2.5 mm

r_1,2 - min. - 0.3 mm

r_3,4 - min. - 0.6 mm

a - 65 mm

d_a - min. - 23 mm

D_a - max. - 40 mm

r_a - max. - 0.3 mm

r_b - max. - 0.6 mm

Basic dynamic load rating - C - 19 kN

Basic static load rating - C₀ - 31 kN

Fatigue load limit - P_u - 1.2 kN

Limiting speed - 6300 r/min

Preload - 720 N

Frictional moment - 0.12 N·m

Static Axial rigidity - 420 N/micron

Mass bearing - 0.22 kg

• Model Number:BEAS 017047-2RZ
• Inner Diameter：17mm Outer Diameter：47mm Width：25mm
• Type：Thrust Ball Bearings
• Update date：2023-03-12
• Application:sheet industry,garden machinery,industrial skin care,Spectrum Products,glass,Pneumatic Actuator,lifting tackle,tower crane,Hydraulic Press,food packaging,machining
• Similar models:SKF BEAS017047-2RS SKF BEAS017047-2RZ
• BEARING POWER International Trading Co.,Ltd. specialize in BEAS017047-2RZ products，there is large inventory of SKF BEAS 017047-2RZ . We has been built up long-term cooperation with SKF company, could make a bulk order of the BEAS 017047-2RZ Which SKF BEAS017047-2RZ is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.

• Model No.	Inner Diameter	Outer Diameter	Width	Brand	Type
  1620-2RS	11,112	34,925	11,112	CYSD	Deep Groove Ball Bearings
  23260RHAK	300	540	192	KOYO	Spherical Roller Bearings
  54316	65	140	86.2	KOYO	Thrust Ball Bearings
  60/1120	1120	1580	200	ISB	Deep Groove Ball Bearings
  71900 ACE/HCP4AH	22	10	6	SKF	Angular Contact Ball Bearings
  7316 ADB	80	170	78	ISO	Angular Contact Ball Bearings
  AST650 354560	35	45		AST	Plain Bearings
  BTM4520A	45	55	20	KOYO	Needle Roller Bearings
  CX090				CX	Wheel Bearings
  NNU 4168 M/W33	340	580	243	ISB	Cylindrical Roller Bearings
  XSA 14 1094 N	1024	1198,1		INA	Thrust Roller Bearings
  C1908HCUL	40	62	12	Barden	ANGULAR CONTACT BALL BEARINGS
  4896	1.3750	1.4375	1.0000	Hyatt	JOURNAL ROLLER BEARING OUTER RACES
  Z99AE008	.5000	1.5748	.5118	New Departure	BALL BEARINGS
  KA120XPO	12.0000	12.5000	.2500	KAYDON	FOUR POINT ANGULAR CONTACT BALL BEARINGS
  NBX27925	11.0000	13.0000	1.0000	NSK	FOUR POINT ANGULAR CONTACT BALL BEARINGS
  RMS-21-LL	4.0000	8.5000	1.7500	CONSOLIDATED	CYLINDRICAL ROLLER BEARINGS
  MR-56-2RS			2.0000	CONSOLIDATED	NEEDLE BEARINGS
  SAF-61013/4..ROLLER	1.7500			CONSOLIDATED	PILLOW BLOCKS
  AHX-3130x145	150	145		CONSOLIDATED	WITHDRAWAL SLEEVES
