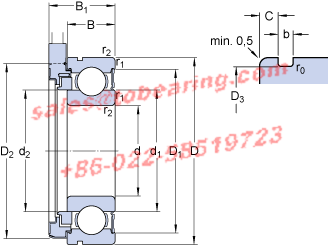

d - 40 mm

D - 80 mm

B₁ - 24.2 mm

B - 18 mm

d₁ - - 52.6 mm

d₂ - 48 mm

D₁ - - 69.8 mm

D₂ - 75.06 mm

D₃ - 76.81 mm

C - 3.28 mm

b - 1.9 mm

r₀ - 0.6 mm

r_1,2 - min. - 1.1 mm

L - 571.1 mm

Tolerance cable length L - ± - 10 mm

d_a - min. - 46.5 mm

d_b - min. - 46.5 mm

d_b - max. - 47.4 mm

D_a - max. - 73.5 mm

r_a - max. - 1 mm

Cable connector type - AMP Superseal

Number of pulses per revolution - N - 80

Period accuracy - ± 5 %

Phase shift output signal - 90 °

Tolerance phase shift output signal - ± 30 °

Basic dynamic load rating - C - 30.7 kN

Basic static load rating - C₀ - 19 kN

Fatigue load limit - P_u - 0.8 kN

Limiting speed - 5600 r/min

Calculation factor - k_r - 0.025

Calculation factor - f₀ - 14

Mass sensor unit - 0.457 kg

Snap ring - SP 80

• Model Number:BMB-6208/080S2/UB108A
• Inner Diameter：80mm Outer Diameter：40mm Width：24,2mm
• Type：Deep Groove Ball Bearings
• Update date：2025-12-10
• Application:beverage production,flow control valve,generator,extruder,reducer,luminescent reagent,Broadcasting System,Broadcasting System,gas turbine,quality inspection equipment,car shock absorber
• Similar models:ISB 6208-RZ NTN EC-6208LLB FAG 6208-2RSR NTN 6208LU ZEN S6208-2Z KOYO 3NC6208YH4 AST 6208-2RS NTN 6208D2 SKF 6208 NSK 6208T1XZZ
• BEARING POWER International Trading Co.,Ltd. specialize in BMB-6208/080S2/UB108A products，there is large inventory of SKF BMB-6208/080S2/UB108A . We has been built up long-term cooperation with SKF company, could make a bulk order of the BMB-6208/080S2/UB108A Which SKF BMB-6208/080S2/UB108A is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
