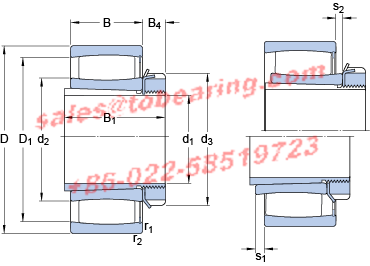

d₁ - 170 mm

D - 320 mm

B₁ - 141 mm

d₂ - - 228 mm

d₃ - 240 mm

D₁ - - 289 mm

B - 104 mm

B₄ - 30.5 mm

s₁ - 19 mm

s₂ - 9.1 mm

r_1,2 - min. - 3 mm

d_a - max. - 267 mm

d_b - min. - 202 mm

D_a - min. - 231 mm

D_a - max. - 306 mm

B_a - min. - 9 mm

r_a - max. - 2.5 mm

Basic dynamic load rating - C - 1700 kN

Basic static load rating - C₀ - 2550 kN

Fatigue load limit - P_u - 224 kN

Limiting speed - 190 r/min

Factor - k₁ - 0.115

Factor - k₂ - 0.096

Mass bearing and adapter sleeve - 45 kg

• Model Number:C 3138 KV + H 3138
• Inner Diameter：320mm Outer Diameter：170mm Width：141mm
• Type：Cylindrical Roller Bearings
• Update date：2025-12-12
• Application:packaging materials,Pneumatic Control Elements,rehabilitation training equipment,Machine Tool Accessories,Medical equipment,gantry processing,journal lathe,Vertical machining,Forging machine,Other Machine Tools,floor industry
• Similar models:ISO NN3138K ISO NUP3138 SKF C3138KV+H3138 ISO NN3138 ISO NF3138 SKF 313877B ISO NU3138 SKF 313893 KOYO 313893-1 KOYO 313811
• BEARING POWER International Trading Co.,Ltd. specialize in C3138KV+H3138 products，there is large inventory of SKF C 3138 KV + H 3138 . We has been built up long-term cooperation with SKF company, could make a bulk order of the C 3138 KV + H 3138 Which SKF C3138KV+H3138 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
