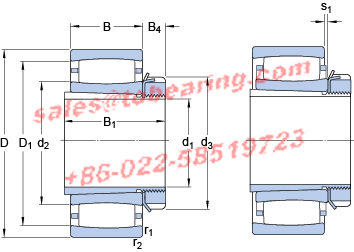

d₁ - 160 mm

D - 320 mm

B₁ - 161 mm

d₂ - - 228 mm

d₃ - 230 mm

D₁ - - 289 mm

B - 112 mm

B₄ - 30 mm

s₁ - 27.3 mm

r_1,2 - min. - 4 mm

d_a - max. - 249 mm

d_b - min. - 195 mm

D_a - min. - 271 mm

D_a - max. - 303 mm

B_a - min. - 22 mm

C_a - min. - 3.2 mm

r_a - max. - 3 mm

Basic dynamic load rating - C - 1530 kN

Basic static load rating - C₀ - 2200 kN

Fatigue load limit - P_u - 193 kN

Reference speed - 1500 r/min

Limiting speed - 2000 r/min

Factor - k₁ - 0.107

Factor - k₂ - 0.104

Mass bearing and adapter sleeve - 47 kg

• Model Number:C 3236 K + H 2336
• Inner Diameter：320mm Outer Diameter：160mm Width：161mm
• Type：Cylindrical Roller Bearings
• Update date：2023-03-07
• Application:Pneumatic Actuator,Energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving,Control,Machine tools,stirrer,inorganic chemical,special broaching machine,ignition system,DC generators,shaft milling machine,rubber products machinery and equipment
• Similar models:NACHI 23236A2XK KOYO NU3236 CX NU3236 CX NJ3236 ISO NU3236 SKF C3236 SKF C3236K ISO NP3236 ISO N3236 ISO NJ3236
• BEARING POWER International Trading Co.,Ltd. specialize in C3236K+H2336 products，there is large inventory of SKF C 3236 K + H 2336 . We has been built up long-term cooperation with SKF company, could make a bulk order of the C 3236 K + H 2336 Which SKF C3236K+H2336 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
