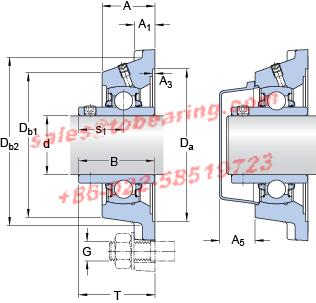

d - 36.512 mm

A - 34.5 mm

A₁ - 13 mm

A₃ - H14 - 3.2 mm

A₅ - 22 mm

B - 42.9 mm

D_a - H11 - 106.4 mm

D_b1 - 87 mm

D_b2 - 95 mm

J - 92 mm

L - 118 mm

H - 14 mm

s₁ - 25.4 mm

T - 46.4 mm

J₆ - 106 mm

J₇ - 29 mm

N₄ - 4 mm

R_G - 1/4-28 UNF

R₁ - 22.5 mm

Basic dynamic load rating - C - 25.5 kN

Basic static load rating - C₀ - 15.3 kN

Fatigue load limit - P_u - 0.655 kN

Limiting speed - 1100 r/min

Mass bearing unit - 1.3 kg

Thread - G₂ - 5/16-24 UNF

Hexagonal key size for grub screw - H - 3.969 mm

Recommended tightening torque for grub screw - 6.5 N·m

• Model Number:FY 1.7/16 TDW
• Inner Diameter：36,512mm Outer Diameter：34,5mm Width：13mm
• Type：Bearing Units
• Update date：2025-12-16
• Application:garden machinery,security equipment,sheet industry,leather processing,medical equipment,plastic molding,marine test,Grinding and polishing equipment,Body shaping,Switch,car
• Similar models:INA KSR16-L0-08-10-16-15 SKF FYR211/16 INA PASEY1-3/16 SKF FYR23/16-18 SKF FY1.15/16WF SKF SY2.15/16TF KOYO UCPH205-16 KOYO UCTX05-16E FYH UCT316 FYH UCTH205-16-150
• BEARING POWER International Trading Co.,Ltd. specialize in FY1.7/16TDW products，there is large inventory of SKF FY 1.7/16 TDW . We has been built up long-term cooperation with SKF company, could make a bulk order of the FY 1.7/16 TDW Which SKF FY1.7/16TDW is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
