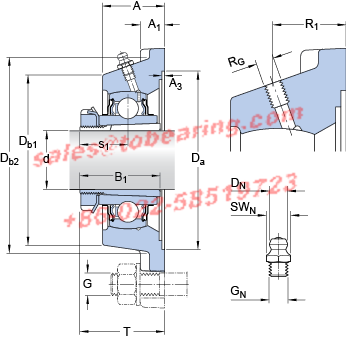

d - 50 mm

A - 43 mm

A₁ - 17 mm

A₃ - H14 - 3.2 mm

B₁ - 59 mm

D_a - H11 - 150.8 mm

D_b1 - 130 mm

D_b2 - 130 mm

J - 130 mm

L - 162 mm

H - 19 mm

s₁ - ? - 32.5 mm

T - 57.5 mm

J₆ - 148 mm

J₇ - 45 mm

N₄ - 4 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 25 mm

Basic dynamic load rating - C - 43.6 kN

Basic static load rating - C₀ - 29 kN

Fatigue load limit - P_u - 1.2 kN

Limiting speed - 3600 r/min

Mass bearing unit - 3.25 kg

• Model Number:FYJ 55 KF
• Inner Diameter：50mm Outer Diameter：43mm Width：17mm
• Type：Bearing Units
• Update date：2023-03-06
• Application:car shock absorber,hanging clamp,medical treatment,small appliances,test strip,hook,Other Machine Tools,stirrer,machine tool spindle,journal lathe,Vertical machining
• Similar models:FYH UCTX17-55E SKF SYNT55F INA RASEY55 INA RCJTY55 SKF TU55FM SKF FY55TF/VA228 INA RTUE55 NKE RSHEY55 SKF SY55WF SKF FYJ55TF
• BEARING POWER International Trading Co.,Ltd. specialize in FYJ55KF products，there is large inventory of SKF FYJ 55 KF . We has been built up long-term cooperation with SKF company, could make a bulk order of the FYJ 55 KF Which SKF FYJ55KF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
