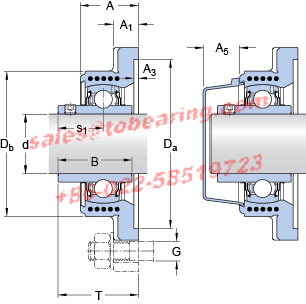

d - 40 mm

A - 39 mm

A₁ - 17 mm

A₃ - H14 - 3.2 mm

A₅ - 23.5 mm

B - 49.2 mm

D_a - H11 - 115.9 mm

D_b - 98 mm

J - 101.5 mm

L - 130 mm

H - 14.8 mm

s₁ - 30.2 mm

T - 54.2 mm

Basic dynamic load rating - C - 30.7 kN

Basic static load rating - C₀ - 19 kN

Fatigue load limit - P_u - 0.8 kN

Limiting speed - 4800 r/min

Mass bearing unit - 0.84 kg

Thread - G₂ - M8x1

Hexagonal key size for grub screw - H - 4 mm

Recommended tightening torque for grub screw - 6.5 N·m

• Model Number:FYK 40 TF
• Inner Diameter：40mm Outer Diameter：39mm Width：17mm
• Type：Bearing Units
• Update date：2023-03-12
• Application:Pneumatic Actuator,chamfer,Oral Image,vertical sawing machine,CNC,centrifugal pump,Roller mill,Storage Tool,ventilation fans,car instrument,Digital Generator
• Similar models:NKE PASEY40-N SKF PFD40TR NKE PSHEY40-N INA RCJT40-N-FA125 SKF PFD40TF SKF SYK40TF INA PCF40 SKF PFD40WF INA TFE40 SKF P85R-40FM
• BEARING POWER International Trading Co.,Ltd. specialize in FYK40TF products，there is large inventory of SKF FYK 40 TF . We has been built up long-term cooperation with SKF company, could make a bulk order of the FYK 40 TF Which SKF FYK40TF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
