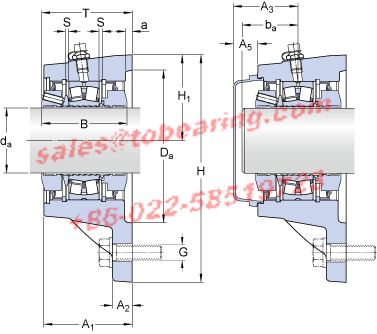

d_a - 35 mm

A₁ - 66 mm

A₂ - 12 mm

T - max. - 72.5 mm

B - 65 mm

H - 143 mm

H₁ - 54 mm

J - 140 mm

L - 159 mm

D_a - 90 mm

H - 14 mm

a - 4 mm

S - 2.5 mm

J₁ - 65 mm

J₂ - 17 mm

J₃ - 48 mm

J₄ - 38.5 mm

J₅ - 16 mm

J₆ - 66 mm

N₄ - max. - 6 mm

A₃ - 50 mm

A₅ - 22 mm

b_a - min. - 34 mm

b_a - max. - 43 mm

Basic dynamic load rating - C - 86.5 kN

Basic static load rating - C₀ - 85 kN

Fatigue load limit - P_u - 9.3 kN

Limiting speed - 4100 r/min

Calculation factor - e - 0.31

Calculation factor - Y₁ - 2.2

Calculation factor - Y₂ - 3.3

Diameter - d_m - 53.5 mm

Basic Designation bearing - 22207 E

P_a - 15 kN

P₁ - 80 kN

P₂ - 55 kN

P₃ - 95 kN

Mass bearing unit - 3 kg

Diameter - G - 12 mm

• Model Number:FYNT 35 L
• Inner Diameter：35mm Outer Diameter：66mm Width：12mm
• Type：Bearing Units
• Update date：2023-03-02
• Application:tapered grinder,gantry processing,mechanical annex,Beauty and Body,container finishing,forming machine,heating fans,Other machinery,power protection,aerial work equipment,Automobile
• Similar models:INA LCJT35-N NKE PBS35 INA PCJ35-N INA PCJY35-N NKE FLCTE35 FYH UCF211-35 SKF FYTJ35TF SKF PFD35TR INA PBS35 NKE PSHEY35-N
• BEARING POWER International Trading Co.,Ltd. specialize in FYNT35L products，there is large inventory of SKF FYNT 35 L . We has been built up long-term cooperation with SKF company, could make a bulk order of the FYNT 35 L Which SKF FYNT35L is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
