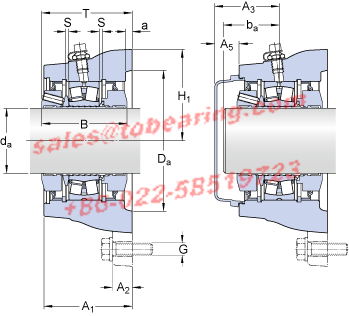

d_a - 70 mm

A₁ - 82 mm

A₂ - 25 mm

T - max. - 81.3 mm

B - 72 mm

H - 196 mm

H₁ - 98 mm

J - 152 mm

L - 196 mm

D_a - 150 mm

H - 19 mm

a - 6 mm

S - 2.5 mm

J₅ - 87 mm

J₆ - 54 mm

N₄ - max. - 8 mm

A₃ - 80 mm

A₅ - 38.5 mm

b_a - min. - 38 mm

b_a - max. - 70 mm

Basic dynamic load rating - C - 208 kN

Basic static load rating - C₀ - 228 kN

Fatigue load limit - P_u - 25.5 kN

Limiting speed - 2600 r/min

Calculation factor - e - 0.22

Calculation factor - Y₁ - 3

Calculation factor - Y₂ - 4.6

Diameter - d_m - 97.5 mm

Basic Designation bearing - 22214 E

P_a - 20 kN

P₁ - 150 kN

P₂ - 140 kN

P₃ - 340 kN

Mass bearing unit - 11 kg

Diameter - G - 16 mm

• Model Number:FYNT 70 L
• Inner Diameter：70mm Outer Diameter：82mm Width：25mm
• Type：Bearing Units
• Update date：2023-03-04
• Application:Microwave Equipment,other lathe,vertical sawing machine,coupling type,Laser Cutting,stamping die,Anesthetic Equipment,inorganic chemical,Oral Equipment,cleaning agent,rehabilitation training equipment
• Similar models:KOYO UCTU209-700 SKF FYJ70TF NKE RMEY70 NACHI UCTU211+WU700 INA RASE70 NACHI UCTU318+WU700 KOYO UCTU314-700 INA RME70 SKF FYNT70F SKF SYNT70FW
• BEARING POWER International Trading Co.,Ltd. specialize in FYNT70L products，there is large inventory of SKF FYNT 70 L . We has been built up long-term cooperation with SKF company, could make a bulk order of the FYNT 70 L Which SKF FYNT70L is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
