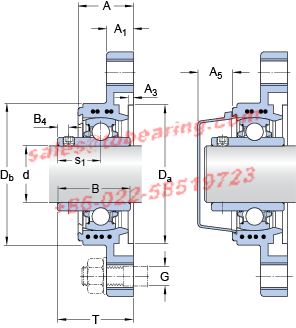

d - 35 mm

A - 35 mm

A₁ - 17 mm

A₃ - H14 - 3.2 mm

A₅ - 22 mm

B - 42.9 mm

B₄ - 6 mm

D_a - H11 - 88.9 mm

D_b - 90 mm

J - 130 mm

H - 156 mm

L - 96 mm

H - 14.8 mm

s₁ - 25.4 mm

T - 46.4 mm

Basic dynamic load rating - C - 25.5 kN

Basic static load rating - C₀ - 15.3 kN

Fatigue load limit - P_u - 0.655 kN

Limiting speed - 1100 r/min

Mass bearing unit - 0.62 kg

Thread - G₂ - M6x0.75

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

• Model Number:FYTBK 35 TD
• Inner Diameter：35mm Outer Diameter：35mm Width：17mm
• Type：Bearing Units
• Update date：2025-12-24
• Application:Polymer,natural instruments,marine test,Beauty and Body,power protection,root canal filling,flow control valve,Hydraulic Press,Vertical machining,Automobile,set bacteria instrument
• Similar models:NKE PASE35-N FYH NANF211-35 SKF SYNT35F INA PASEY35-N SKF P35TR SKF TUWK35LTA INA LASE35-N INA PCJTY35-N INA TASE35-N KOYO UCIP211-35
• BEARING POWER International Trading Co.,Ltd. specialize in FYTBK35TD products，there is large inventory of SKF FYTBK 35 TD . We has been built up long-term cooperation with SKF company, could make a bulk order of the FYTBK 35 TD Which SKF FYTBK35TD is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
