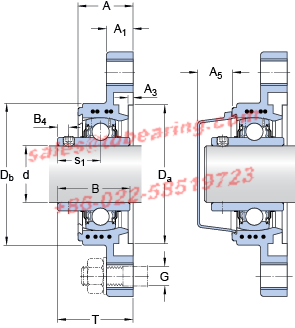

d - 35 mm

A - 35 mm

A₁ - 17 mm

A₃ - H14 - 3.2 mm

A₅ - 22 mm

B - 42.9 mm

B₄ - 6 mm

D_a - H11 - 88.9 mm

D_b - 90 mm

J - 130 mm

H - 156 mm

L - 96 mm

H - 14.8 mm

s₁ - 25.4 mm

T - 46.4 mm

Basic dynamic load rating - C - 25.5 kN

Basic static load rating - C₀ - 15.3 kN

Fatigue load limit - P_u - 0.655 kN

Limiting speed - 5300 r/min

Mass bearing unit - 0.59 kg

Thread - G₂ - M6x0.75

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

• Model Number:FYTBK 35 TF
• Inner Diameter：35mm Outer Diameter：35mm Width：17mm
• Type：Bearing Units
• Update date：2025-12-12
• Application:trolley,animal,lifting chain,boring bar boring bar,casting embedding,Processing machinery,medical equipment,reinforced machinery,packing equipment,screen filter,Material handling equipment
• Similar models:SKF SY35WF SKF FYTBK35TD SKF P80R-35FM SKF PF35TF KOYO UCIP211-35 INA PCFT35 INA FLCTE35 AST UCF211-35E NKE PME35-N INA RCJTY35-N
• BEARING POWER International Trading Co.,Ltd. specialize in FYTBK35TF products，there is large inventory of SKF FYTBK 35 TF . We has been built up long-term cooperation with SKF company, could make a bulk order of the FYTBK 35 TF Which SKF FYTBK35TF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
