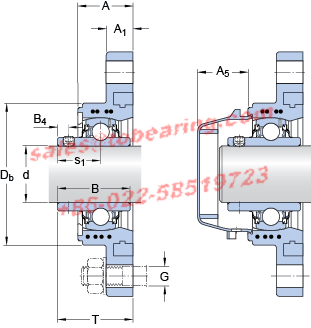

d - 30.162 mm

A - 33 mm

A₁ - 15 mm

A₅ - 30.5 mm

B - 38.1 mm

B₄ - 5 mm

D_b - 78 mm

J - 116.5 mm

H - 142.5 mm

L - 83 mm

H - 12.3 mm

s₁ - 22.2 mm

T - 42.2 mm

Basic dynamic load rating - C - 16.3 kN

Basic static load rating - C₀ - 11.2 kN

Fatigue load limit - P_u - 0.475 kN

Limiting speed - 3800 r/min

Mass bearing unit - 0.46 kg

Thread - G₂ - 1/4-28 UNF

Hexagonal key size for grub screw - H - 3.175 mm

Recommended tightening torque for grub screw - 4 N·m

• Model Number:FYTWK 1.3/16 YTH
• Inner Diameter：30,162mm Outer Diameter：33mm Width：15mm
• Type：Bearing Units
• Update date：2023-03-03
• Application:altimeter etc,quality inspection equipment,directional control valve,product accessories,fruit and vegetable processing,marine analysis and testing equipment,Solenoid Valves,gantry processing,Insect Capture,Industrial equipment,Medium and large motor
• Similar models:FYH UCTU316-700 SKF FY1.3/16TF/VA228 SKF FYWK1.3/16YTA INA RAKY1-15/16 INA PCJ1-3/16 SKF SYM2.11/16TF INA RASEY15/16 SKF SY2.3/16FM SKF FYRP23/16 SKF SY2.7/16TF
• BEARING POWER International Trading Co.,Ltd. specialize in FYTWK1.3/16YTH products，there is large inventory of SKF FYTWK 1.3/16 YTH . We has been built up long-term cooperation with SKF company, could make a bulk order of the FYTWK 1.3/16 YTH Which SKF FYTWK1.3/16YTH is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
