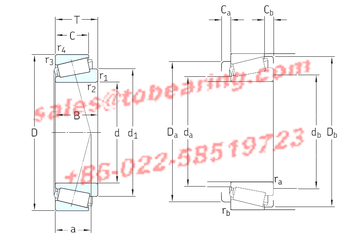

d - 38,1 mm

D - 82,55 mm

T - 29,37 mm

B - 28,575 mm

C - 23,02 mm

a - 24 mm

d1 - 64,1 mm

r1 min. - 0,8 mm

r2 min. - 0,8 mm

r3 min. - 3,3 mm

r4 min. - 3,3 mm

Ca min. - 4 mm

Cb min. - 6 mm

da max - 49 mm

Da min - 64 mm

Da max. - 71 mm

db min - 43 mm

Db min. - 78 mm

ra max. - 0,8 mm

rb max. - 3,1 mm

Weight - 0,78 Kg

Basic dynamic load rating (C) - 85,8 kN

Basic static load rating (C0) - 118 kN

Fatigue load limit (Pu) - 13,4

Reference speed - 6000 r/min

Limiting speed - 8500 r/min

Calculation factor (e) - 0,54

Calculation factor (Y) - 1,1

Calculation factor (Y0) - 0,6

• Model Number:HM801346/310/Q
• Inner Diameter：38,1mm Outer Diameter：82,55mm Width：29,37mm
• Type：Tapered Roller Bearings
• Update date：2025-12-16
• Application:chamfer,metal mold,industrial supplies,standing experimental equipment,tire industry,wall industry,Sensors,relay,power protection,diving equipment,lifting upgrade
• Similar models:ISB HM801346/310 Timken HM801346X/HM801310 FBJ HM801346/HM801310 ISO HM801346X/10 Fersa HM801346X/HM801310 SKF HM801346/310/Q NTN 4T-HM801346/HM801310 NTN 4T-HM801346X/HM801310 AST HM801346/HM801310 Timken HM801346/HM801311
• BEARING POWER International Trading Co.,Ltd. specialize in HM801346/310/Q products，there is large inventory of SKF HM801346/310/Q . We has been built up long-term cooperation with SKF company, could make a bulk order of the HM801346/310/Q Which SKF HM801346/310/Q is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
