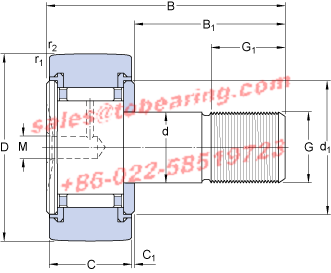

D - 19 mm

d - 8 mm

B - 32 mm

C - 11 mm

B₁ - 20 mm

C₁ - 0.6 mm

d₁ - 15 mm

G - M 8

G₁ - 10 mm

M - 4 mm

r_1,2 - min. - 0.15 mm

Basic dynamic load rating - C - 3.5 kN

Basic static load rating - C₀ - 3.8 kN

Fatigue load limit - P_u - 0.415 kN

Maximum dynamic radial loads - F_r - 3.8 kN

Maximum static radial loads - F_0r - 5.5 kN

Limiting speed - 5600 r/min

Mass support roller - 0.029 kg

Recommended tighthening torque - 8 N·m

Grease fitting - NIP A1

Hexagonal nut - M 8x1.25

Plug - VD1

• Model Number:KR 19 PPA
• Inner Diameter：8mm Outer Diameter：19mm Width：32mm
• Type：Cylindrical Roller Bearings
• Update date：2023-03-15
• Application:drawing die,climb ladder,atomizer class,Machine Tool Accessories,printing equipment,respirator,scientific instruments,Wire grinder,laser devices,Broadcasting System,wheel lathe
• Similar models:NSK NU319 ISO N1972 CX NU1940 NSK NN3019TBKR NSK EE295110/295193 NSK EE231400/231975 NBS SL192313 SKF NU2219ECP NBS ZSL192322 INA ZSL192310
• BEARING POWER International Trading Co.,Ltd. specialize in KR19PPA products，there is large inventory of SKF KR 19 PPA . We has been built up long-term cooperation with SKF company, could make a bulk order of the KR 19 PPA Which SKF KR19PPA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.

• Model No.	Inner Diameter	Outer Diameter	Width	Brand	Type
  230/950BK	950	1360	300	NTN	Spherical Roller Bearings
  2RT1419	72,000	102,000	12,500	NTN	Thrust Roller Bearings
  52209	47	73	37	ISO	Thrust Ball Bearings
  71812 ACD/HCP4	78	60	10	SKF	Angular Contact Ball Bearings
  7206UCG/GNP42	30	62	16	NTN	Angular Contact Ball Bearings
  7213DT	65	120	23	NACHI	Angular Contact Ball Bearings
  7226 BGAM	230	130	40	SKF	Angular Contact Ball Bearings
  AB12013	35	85	20	SNR	Deep Groove Ball Bearings
  GE 40 AX	40	105	27	SIGMA	Plain Bearings
  K28X41X25H	28	41		Timken	Needle Roller Bearings
  N202	15	35	11	CYSD	Cylindrical Roller Bearings
  QJ210	50	90	20	FBJ	Angular Contact Ball Bearings
  RF303429	30	34		KOYO	Needle Roller Bearings
  RNA0-40X55X20	40,000	55,000	20,000	NTN	Needle Roller Bearings
  T-H247535/H247510D+A	200,025	384,175	238,125	NTN	Tapered Roller Bearings
  T-E-48393D/48320/48320D	136,525	190,5	161,925	NTN	Tapered Roller Bearings
  XLJ4.1/2	114,3	158,75	22,225	RHP	Deep Groove Ball Bearings
  NJ212E	60	110	22	SKF	CYLINDRICAL ROLLER BEARINGS
  1844S	220	270	24	MRC	DEEP GROOVE BALL BEARINGS
  NM10	1.2500	3.1250	.8750	STEYR	CYLINDRICAL ROLLER BEARINGS
