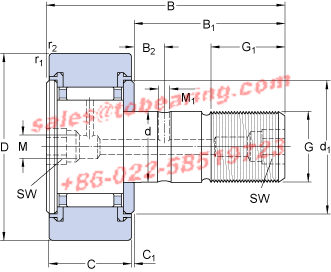

D - 47 mm

d - 20 mm

B - 66 mm

C - 24 mm

B₁ - 40.5 mm

B₂ - 9 mm

C₁ - 0.8 mm

d₁ - 36.5 mm

G - M 20x1.5

G₁ - 21 mm

M - 6 mm

M₁ - 4 mm

SW - 10 mm

r_1,2 - min. - 1 mm

Basic dynamic load rating - C - 14.7 kN

Basic static load rating - C₀ - 24.5 kN

Fatigue load limit - P_u - 2.9 kN

Maximum dynamic radial loads - F_r - 23.6 kN

Maximum static radial loads - F_0r - 33.5 kN

Limiting speed - 3000 r/min

Mass support roller - 0.381 kg

Recommended tighthening torque - 120 N·m

Grease fitting - NIP A2x7.5

Hexagonal nut - M 20x1.5

Lubrication adapter - AP 10

• Model Number:KR 47 PPXA
• Inner Diameter：20mm Outer Diameter：47mm Width：66mm
• Type：Cylindrical Roller Bearings
• Update date：2023-03-04
• Application:plant determination,Perfusion device,small diesel generators,electromagnet,squeeze machine etc,key lock,packaging machinery,auto tools,Broadcasting System,Processing machinery,standing experimental equipment
• Similar models:ISB FCDP142204710 NSK 64452/64700 SKF BNTB326247/HB1 NSK H247549/H247510 CX NAO30x47x18 Timken 60RIJ247 NSK HM266447/HM266410 NTN 2R2472LL NTN RNU4702 Timken 60RIN247
• BEARING POWER International Trading Co.,Ltd. specialize in KR47PPXA products，there is large inventory of SKF KR 47 PPXA . We has been built up long-term cooperation with SKF company, could make a bulk order of the KR 47 PPXA Which SKF KR47PPXA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
