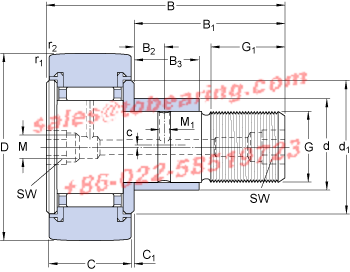

D - 62 mm

d - 28 mm

B - 80 mm

C - 29 mm

B₁ - 49.5 mm

B₂ - 11 mm

B₃ - 22 mm

C₁ - 0.8 mm

d₁ - 44 mm

G - M 24x1.5

G₁ - 25 mm

M - 8 mm

M₁ - 4 mm

SW - 14 mm

c - 1 mm

r_1,2 - min. - 1 mm

Basic dynamic load rating - C - 24.6 kN

Basic static load rating - C₀ - 44 kN

Fatigue load limit - P_u - 5.5 kN

Maximum dynamic radial loads - F_r - 58.5 kN

Maximum static radial loads - F_0r - 85 kN

Limiting speed - 2400 r/min

Mass support roller - 0.798 kg

Recommended tighthening torque - 220 N·m

Grease fitting - NIP A3x9.5

Hexagonal nut - M 24x1.5

Lubrication adapter - AP 14

• Model Number:KRE 62 PPA
• Inner Diameter：28mm Outer Diameter：62mm Width：80mm
• Type：Cylindrical Roller Bearings
• Update date：2023-03-19
• Application:storage and transportation equipment,wheel lathe,light therapy instrument,stamping die and its equipment,agricultural testing and analysis equipment and related,universal category,plastic molding,bio-chemical,surgical instruments,Forging machine,container finishing
• Similar models:SKF BC4B319862 CX BK182620 NSK 48684/48620 NTN SLX60X130X62 SKF 316624 IKO TRU426230 SKF NUKR62A NSK 36691/36620 SKF 319262B NTN RNU2062
• BEARING POWER International Trading Co.,Ltd. specialize in KRE62PPA products，there is large inventory of SKF KRE 62 PPA . We has been built up long-term cooperation with SKF company, could make a bulk order of the KRE 62 PPA Which SKF KRE62PPA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
