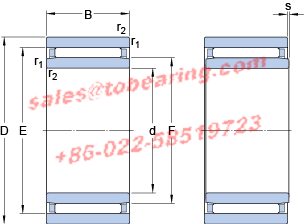

d - 9 mm

D - 22 mm

B - 12 mm

E - 18 mm

F - 12 mm

r_1,2 - min. - 0.3 mm

s - 0.5 mm

d_a - 17.6 mm

d_b - 11.7 mm

D_a - 18.3 mm

D_b - 12.3 mm

r_a - max. - 0.3 mm

Basic dynamic load rating - C - 9.5 kN

Basic static load rating - C₀ - 10 kN

Fatigue load limit - P_u - 1.2 kN

Reference speed - 26000 r/min

Limiting speed - 30000 r/min

Mass bearing - 0.0235 kg

• Model Number:NAO 9x22x12 TN
• Inner Diameter：22mm Outer Diameter：9mm Width：12mm
• Type：Cylindrical Roller Bearings
• Update date：2023-03-06
• Application:clean stationery,gear grinding machine,Film machine,hydraulic control element,Spectrum Products,packing equipment,plastic rolling,Pneumatic Control Elements,defogging and degreasing,reducer,leather processing
• Similar models:NACHI 22210AEX NKE NJ2228-E-MA6 CYSD NUP2215E SNR NJ221EG15 NACHI 22209AEX FBJ NJ2206 NKE NU2322-E-TVP3 SKF C2211KV SKF RNA2202.2RS NACHI NUP2204E
• BEARING POWER International Trading Co.,Ltd. specialize in NAO9x22x12TN products，there is large inventory of SKF NAO 9x22x12 TN . We has been built up long-term cooperation with SKF company, could make a bulk order of the NAO 9x22x12 TN Which SKF NAO9x22x12TN is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
