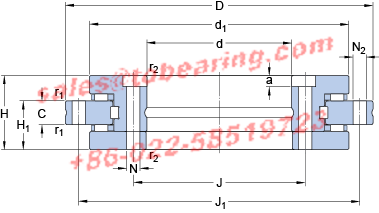

d - 80 mm

D - 146 mm

H - 35 mm

d₁ - 130 mm

C - 12 mm

H₁ - 23.35 mm

J - 92 mm

J₁ - 138 mm

H - 5.6 mm

N₁ - 10 mm

N₂ - 4.6 mm

a - 4 mm

r₁ - min. - 0.3 mm

r₂ - min. - 0.3 mm

Basic dynamic load rating, radial direction - C - 55 kN

Basic static load rating, radial direction - C₀ - 102 kN

Basic dynamic load rating, axial direction - C - 37.5 kN

Basic static load rating, axial direction - C₀ - 200 kN

Limiting speed for grease lubrication - 350 r/min

Limiting speed for oil lubrication - 700 mm/min

Axial Preload - 1.3 N

Axial unloading force - 2.8 kN

Frictional moment - C_RL - 3 N·m

axial stiffness - 5 N/micron

radial stiffness - 3.1 N/micron

Moment stiffness - 7000 kN·m/mrad

Mass bearing - 2.3 kg

Guideline diameter - 200 mm

Size - G - M5

Number of bolts - 3

Angle between bolts - 120 °

Size bolts - M4

Pitch - &alfa; - 30 °

Number of bolts - 9

Tightening torque - 4.5 N·m

Size bolts - M5

Pitch - &alfa; - 30 °

Number of bolts - 10

Tightening torque - 8.5 N·m

Size - M5

Number of bolts - 2

• Model Number:NRT 80 B
• Inner Diameter：80mm Outer Diameter：146mm Width：35mm
• Type：Thrust Roller Bearings
• Update date：2023-03-04
• Application:food / grain / food equipment,equipment,scientific instruments,chamfering machine etc,Forming mold,labor insurance,Vertical pull,Optical detection,Spectrum Products,Spectrum Products,industrial supplies
• Similar models:NTN 2RT8807 CX 29380M SKF 81180M FAG 29480-E1-MB INA AXK80105 SKF 293/800 SNR 22317EKF800 IKO CRB800100 IKO CRB80070 SNR 22332EKF800
• BEARING POWER International Trading Co.,Ltd. specialize in NRT80B products，there is large inventory of SKF NRT 80 B . We has been built up long-term cooperation with SKF company, could make a bulk order of the NRT 80 B Which SKF NRT80B is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
