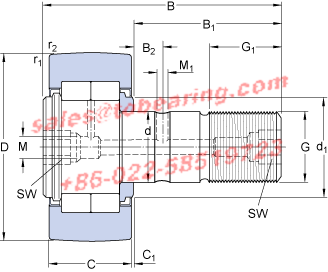

D - 52 mm

d - 20 mm

B - 66 mm

C - 24 mm

B₁ - 40.5 mm

B₂ - 9 mm

C₁ - 0.8 mm

d₁ - 31 mm

G - M 20x1.5

G₁ - 25 mm

M - 6 mm

M₁ - 4 mm

SW - 10 mm

r_1,2 - min. - 1 mm

Basic dynamic load rating - C - 29.7 kN

Basic static load rating - C₀ - 36 kN

Fatigue load limit - P_u - 4.2 kN

Maximum dynamic radial loads - F_r - 18 kN

Maximum static radial loads - F_0r - 25.5 kN

Limiting speed - 3200 r/min

Mass support roller - 0.45 kg

Recommended tighthening torque - 120 N·m

Grease fitting - NIP A2x7.5

Hexagonal nut - M 20x1.5

Lubrication adapter - AP 10

• Model Number:NUKR 52 A
• Inner Diameter：20mm Outer Diameter：52mm Width：66mm
• Type：Cylindrical Roller Bearings
• Update date：2023-03-07
• Application:gear type,engineering machine,standing experimental equipment,filter paper products,cleaning agent,rolling mill roll neck and slowdown device,gantry processing,Roller,security equipment,medical equipment,rehabilitation training equipment
• Similar models:NKE NCF1852-V NSK EE752305/752380 NTN NJ252 CX NJ5221 ISO BK172520 ISO NNF5052XV ISO NJ5216 SKF NN3052K/SPW33 NSK H852849/H852810 NSK HM252343/HM252310
• BEARING POWER International Trading Co.,Ltd. specialize in NUKR52A products，there is large inventory of SKF NUKR 52 A . We has been built up long-term cooperation with SKF company, could make a bulk order of the NUKR 52 A Which SKF NUKR52A is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
