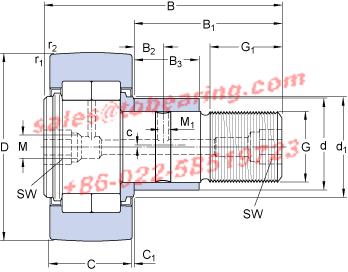

D - 72 mm

d - 28 mm

B - 80 mm

C - 28 mm

B₁ - 49.5 mm

B₂ - 11 mm

B₃ - 22 mm

C₁ - 1.3 mm

d₁ - 44 mm

G - M 24x1.5

G₁ - 25 mm

M - 8 mm

M₁ - 4 mm

SW - 14 mm

c - 1 mm

r_1,2 - min. - 1.1 mm

Basic dynamic load rating - C - 45.7 kN

Basic static load rating - C₀ - 58.5 kN

Fatigue load limit - P_u - 7.1 kN

Maximum dynamic radial loads - F_r - 34.5 kN

Maximum static radial loads - F_0r - 50 kN

Limiting speed - 2000 r/min

Mass support roller - 1.05 kg

Recommended tighthening torque - 220 N·m

Grease fitting - NIP A3x9.5

Hexagonal nut - M 24x1.5

Lubrication adapter - AP 14

• Model Number:NUKRE 72 A
• Inner Diameter：28mm Outer Diameter：72mm Width：80mm
• Type：Cylindrical Roller Bearings
• Update date：2023-03-05
• Application:Gear grinding machine,engineering machinery,Beauty and Body,Seals,diving equipment,top industry,circulating pump,Grinding and polishing equipment,Insect Count,SPA equipment,office equipment
• Similar models:ISO N3072 CX NUP3072 NSK RSF-4972E4 SKF NN3072K/SPW33 ISO HK172514 NSK 687/672A ISO NN3072 KOYO NN3072K NSK M272749/M272710 CX HK172520
• BEARING POWER International Trading Co.,Ltd. specialize in NUKRE72A products，there is large inventory of SKF NUKRE 72 A . We has been built up long-term cooperation with SKF company, could make a bulk order of the NUKRE 72 A Which SKF NUKRE72A is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
