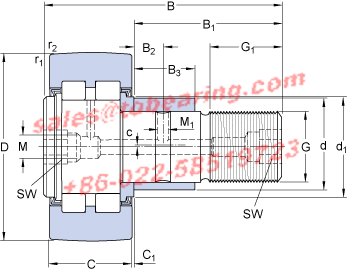

D - 47 mm

d - 24 mm

B - 66 mm

C - 24 mm

B₁ - 40.5 mm

B₂ - 9 mm

B₃ - 18 mm

C₁ - 0.8 mm

d₁ - 27 mm

G - M 20x1.5

G₁ - 21 mm

M - 6 mm

M₁ - 4 mm

SW - 10 mm

c - 1 mm

r_1,2 - min. - 1 mm

Basic dynamic load rating - C - 22.9 kN

Basic static load rating - C₀ - 24.5 kN

Fatigue load limit - P_u - 2.8 kN

Maximum dynamic radial loads - F_r - 18.3 kN

Maximum static radial loads - F_0r - 26 kN

Limiting speed - 3800 r/min

Mass support roller - 0.4 kg

Recommended tighthening torque - 120 N·m

Grease fitting - NIP A2x7.5

Hexagonal nut - M 20x1.5

Lubrication adapter - AP 10

• Model Number:PWKRE 47.2RS
• Inner Diameter：24mm Outer Diameter：47mm Width：66mm
• Type：Cylindrical Roller Bearings
• Update date：2025-12-15
• Application:Broadcasting System,packing equipment,dye pigments,Insect Capture,Insect Count,hot and cold box,medical Equipment,wheel lathe,steam Hydraulic control element,Pneumatic Control Elements,Power equipment
• Similar models:CX NAO30x47x16 ISB FCDP156214780 SKF PWKRE47.2RS INA F-236947.2 NSK 74472/74846X NSK STF470RV6611g CX RNAO35x47x32 INA 722034710 NSK L865547/L865512 SKF NUKR47A
• BEARING POWER International Trading Co.,Ltd. specialize in PWKRE47.2RS products，there is large inventory of SKF PWKRE 47.2RS . We has been built up long-term cooperation with SKF company, could make a bulk order of the PWKRE 47.2RS Which SKF PWKRE47.2RS is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
