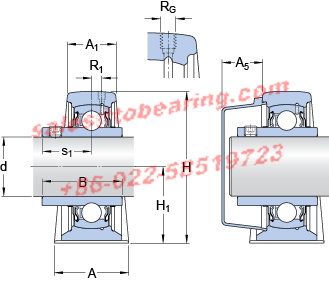

d - 50.8 mm

A - 60 mm

A₁ - 40 mm

A₅ - 34 mm

B - 55.6 mm

H - 126 mm

H₁ - 63.5 mm

H₂ - 24 mm

J - 171.5 mm

J - max. - 181 mm

J - min. - 162 mm

L - 219 mm

H - 27.5 mm

N₁ - 18 mm

s₁ - 33.4 mm

J₆ - 201 mm

J₇ - 21 mm

N₄ - 4 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 4.5 mm

R_α - 45 °

Basic dynamic load rating - C - 43.6 kN

Basic static load rating - C₀ - 29 kN

Fatigue load limit - P_u - 1.2 kN

Limiting speed - 3600 r/min

Weight - 3.45 kg

Hexagonal key size for grub screw - H - 4.762 mm

Recommended tightening torque for grub screw - 16.5 N·m

• Model Number:SY 2. TF
• Inner Diameter：50,8mm Outer Diameter：60mm Width：40mm
• Type：Bearing Units
• Update date：2023-03-12
• Application:molding machine,Body shaping,defogging and degreasing,Chromatography Products,surgical instruments,Processing machinery,enzyme,small appliances,plastic rolling,tobacco machinery,Medical equipment
• Similar models:INA RCJL60-N KOYO BLF207-20 NACHI UGFL210 SKF FYTJ30KF+HE2306 INA PCJT12 FYH UCPA209-27 AST UCF207-20E SNR UCT313 FYH UCFA206-19 KOYO UKT311
• BEARING POWER International Trading Co.,Ltd. specialize in SY2.TF products，there is large inventory of SKF SY 2. TF . We has been built up long-term cooperation with SKF company, could make a bulk order of the SY 2. TF Which SKF SY2.TF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.

• Model No.	Inner Diameter	Outer Diameter	Width	Brand	Type
  1218K	90	160	30	ISO	Self-Aligning Ball Bearings
  22308-E1	40	90	33	FAG	Spherical Roller Bearings
  AU0822-2LL/L588	40	80	40	NTN	Angular Contact Ball Bearings
  3NCHAR930C	150	210	28	KOYO	Angular Contact Ball Bearings
  476/472A	60		29,007	KOYO	Tapered Roller Bearings
  6226	130	230	40	ISB	Deep Groove Ball Bearings
  841/832B	85,725	168,275	56,363	Timken	Tapered Roller Bearings
  7822CP4	110	140	16	NTN	Angular Contact Ball Bearings
  AXK 0515 TN	5	15	2	NBS	Needle Roller Bearings
  K81222	110,000	160,000		NTN	Thrust Roller Bearings
  LMEFP8LUU	8	16		Samick	Linear Bearings
  L319249/L319210	95,25	130,175	20,638	FBJ	Tapered Roller Bearings
  MJ-24121	38,1	47,625	19,05	NSK	Needle Roller Bearings
  NNC 4840 CV	250	200	50	SKF	Cylindrical Roller Bearings
  NU318-E-MA6	90	190	43	NKE	Cylindrical Roller Bearings
  TA 7025 Z	70	82	25	IKO	Needle Roller Bearings
  UC320-63	100,0125	215	54	SNR	Deep Groove Ball Bearings
  BR-7752	1.1250	2.5000	.6250	FED	DEEP GROOVE BALL BEARINGS
  W-31/2				INA	THRUST BALL BEARINGS
  6308-2ZNR	40	90	23	STEYR	DEEP GROOVE BALL BEARINGS
