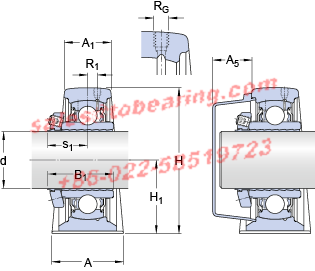

d - 55 mm

d - 56.67 mm

A - 60 mm

A₁ - 40 mm

A₅ - 34 mm

B₁ - 49 mm

H - 126 mm

H₁ - 63.5 mm

H₂ - 24 mm

J - 171.5 mm

J - max. - 181 mm

J - min. - 162 mm

L - 219 mm

H - 27.5 mm

N₁ - 18 mm

s₁ - 29 mm

J₆ - 201 mm

J₇ - 21 mm

N₄ - 4 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 4.5 mm

R_α - 45 °

Basic dynamic load rating - C - 43.6 kN

Basic static load rating - C₀ - 29 kN

Fatigue load limit - P_u - 1.2 kN

Limiting speed - 3600 r/min

Weight - 3.35 kg

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 7.4 N·m

SKF - 626830

• Model Number:SY 55 LF
• Inner Diameter：55mm Outer Diameter：56,67mm Width：60mm
• Type：Bearing Units
• Update date：2023-03-14
• Application:Cylinder Standard,Digital Generator,ventilator anesthesia machine etc,animal,mobile toilet,instrument,metallurgy,Microwave Equipment,rock drilling machinery,Industrial,chamfering machine etc
• Similar models:NKE RASEY55 INA RSHE55 SKF FYT55TF/VA228 INA TME55 NKE RME55 NKE RCJT55 KOYO UCFCX17-55 NKE RTUE55 NKE PASE55 SKF FY55FM
• BEARING POWER International Trading Co.,Ltd. specialize in SY55LF products，there is large inventory of SKF SY 55 LF . We has been built up long-term cooperation with SKF company, could make a bulk order of the SY 55 LF Which SKF SY55LF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
