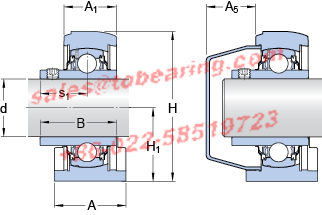

d - 35 mm

A - 48 mm

A₁ - 32.5 mm

B - 42.9 mm

H - 95 mm

H₁ - 47.6 mm

J - 82.6 mm

L - 110 mm

s₁ - 25.4 mm

Basic dynamic load rating - C - 21.6 kN

Basic static load rating - C₀ - 15.3 kN

Fatigue load limit - P_u - 0.655 kN

Limiting speed - 3200 r/min

Calculation factor - f₀ - 14

Weight - 0.73 kg

Size thread - G - M10

Thread length - G₁ - 12 mm

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

Housing - SYFWK 507 L

Bearing - YAR 207-2RFGR/HV

End cover - ECL 207

• Model Number:SYFWK 35 LTHR
• Inner Diameter：35mm Outer Diameter：48mm Width：32,5mm
• Type：Bearing Units
• Update date：2025-12-15
• Application:hydraulic cylinder,Film machine,dynamic blood pressure,garden machinery,agricultural testing and analysis equipment and related,Industrial,Rolling mill,hydraulic connector,key lock,storage shelves,Spectrum Products
• Similar models:INA PCJTY35-N NKE RASE35-N INA RATR35 INA TCJT35-N SKF FY35WF KOYO NANFL211-35 SKF FYJ35KF+HA2307 FYH UCC211-35 INA GRA35 SKF FYK35LEF
• BEARING POWER International Trading Co.,Ltd. specialize in SYFWK35LTHR products，there is large inventory of SKF SYFWK 35 LTHR . We has been built up long-term cooperation with SKF company, could make a bulk order of the SYFWK 35 LTHR Which SKF SYFWK35LTHR is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
