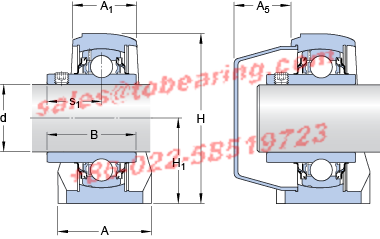

d - 49.213 mm

A - 60 mm

A₁ - 37 mm

A₅ - 42.4 mm

B - 51.6 mm

H - 114 mm

H₁ - 57.2 mm

H₂ - 23 mm

J - 159 mm

J - max. - 162 mm

J - min. - 156 mm

L - 206 mm

H - 20 mm

N₁ - 17 mm

s₁ - 32.6 mm

Basic dynamic load rating - C - 35.1 kN

Basic static load rating - C₀ - 23.2 kN

Fatigue load limit - P_u - 0.98 kN

Limiting speed - 2200 r/min

Weight - 1.35 kg

Hexagonal key size for grub screw - H - 4.762 mm

Recommended tightening torque for grub screw - 16.5 N·m

• Model Number:SYWK 1.15/16 LTA
• Inner Diameter：49,213mm Outer Diameter：60mm Width：37mm
• Type：Bearing Units
• Update date：2023-03-04
• Application:centrifugal pump,ventilator anesthesia machine etc,baler,aerial work equipment,paint paint,inorganic chemical,ECG,ultra-quiet generators,switch,hydraulic connector,embroidery cloth
• Similar models:INA KSR25-L0-20-10-13-15 CX UCFC215 FYH UCFS315 AST UCP215 SNR EXC315 KOYO UCHA205-15 KOYO UCFS315-48 FYH UCC315-48 ISO UCFL315 ISO UKFC215
• BEARING POWER International Trading Co.,Ltd. specialize in SYWK1.15/16LTA products，there is large inventory of SKF SYWK 1.15/16 LTA . We has been built up long-term cooperation with SKF company, could make a bulk order of the SYWK 1.15/16 LTA Which SKF SYWK1.15/16LTA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
