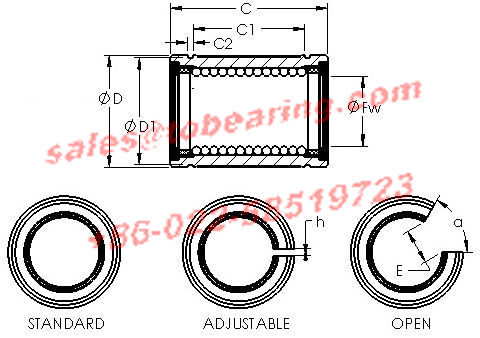

(dimensions in inches)

Bearing Type - adjustable clearance type

Dynamic Load Rating (Cr) - 137

Static Load Rating (Cor) - 378

Shaft Dia. (Fw) - 0.750

Outside Dia. (D) - 1.250

Length ( C ) - 1.625

Groove-to-groove length (C1) - 1.166

Groove Width (C2) - 0.056

Groove Dia. (D1) - 1.194

Adjustable Open Gap (h) - 0.094

Weight (g) - 78.50

Material - 52100 chrome steel, or equivalent

The load ratings are based on Load Direction A loading. See the product technical pages for more information.

Tolerance data is available in the product technical pages.

Stainless steel models are available.

• Model Number:LBB 12 AJ
• Inner Diameter：19,05mm Outer Diameter：mm Width：mm
• Type：Linear Bearings
• Update date：2025-12-12
• Application:impression material,Medium and large motor,electric pump,generator,Body shaping,Switch,metal mold,electrostatic protection,Other Measurements,special broaching machine,Roller mill
• Similar models:Samick LMKP12 Samick SCE12WUU SKF LBCR12A AST LBB12AJ KOYO SDM12AJ KOYO SDMF12MG Samick LMH12LUU Samick LMFP12LUU Samick LMKM12 AST LBB12UU
• BEARING POWER International Trading Co.,Ltd. specialize in LBB12AJ products，there is large inventory of AST LBB 12 AJ . We has been built up long-term cooperation with AST company, could make a bulk order of the LBB 12 AJ Which AST LBB12AJ is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
