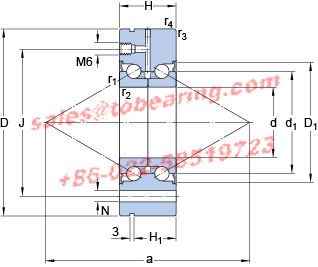

d - 17 mm

D - 62 mm

H - 25 mm

d₁ - 30 mm

D₁ - 38 mm

H₁ - 17 mm

r_1,2 - min. - 0.3 mm

r_3,4 - min. - 0.6 mm

a - 65 mm

J - 48 mm

H - 6.8 mm

d_a - min. - 23 mm

D_a - max. - 38 mm

r_a - max. - 0.6 mm

Basic dynamic load rating - C - 19 kN

Basic static load rating - C₀ - 31 kN

Fatigue load limit - P_u - 1.2 kN

Limiting speed - 3800 r/min

Preload - 720 N

Frictional moment - 0.24 N·m

Static Axial rigidity - 420 N/micron

Mass bearing - 0.45 kg

Required attachment bolt size - M6

Number of attachment bolts - 6

• Model Number:BEAM 017062-2RS/PE
• Inner Diameter：17mm Outer Diameter：62mm Width：25mm
• Type：Thrust Ball Bearings
• Update date：2023-03-06
• Application:tooth filling,Grinding and polishing equipment,spectrometer,raw material accessories,rubber products machinery and equipment,Broadcasting System,Polymer,hinge industry,electromagnet,disposable,shaft milling machine
• Similar models:SKF BEAM017062-2RS/PE SKF BEAM017062-2RZ/PE SKF BEAM017062-2RZ SKF BEAM017062-2RS
• BEARING POWER International Trading Co.,Ltd. specialize in BEAM017062-2RS/PE products，there is large inventory of SKF BEAM 017062-2RS/PE . We has been built up long-term cooperation with SKF company, could make a bulk order of the BEAM 017062-2RS/PE Which SKF BEAM017062-2RS/PE is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
