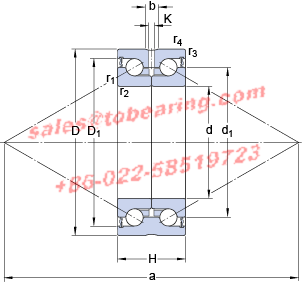

d - 12 mm

D - 42 mm

H - 25 mm

d₁ - 25 mm

D₁ - 33.5 mm

b - 3.1 mm

K - 2.5 mm

r_1,2 - min. - 0.3 mm

r_3,4 - min. - 0.6 mm

a - 56 mm

d_a - min. - 16 mm

D_a - max. - 35 mm

r_a - max. - 0.3 mm

r_b - max. - 0.6 mm

Basic dynamic load rating - C - 16.8 kN

Basic static load rating - C₀ - 24.5 kN

Fatigue load limit - P_u - 0.915 kN

Limiting speed - 4000 r/min

Preload - 600 N

Frictional moment - 0.16 N·m

Static Axial rigidity - 350 N/micron

Mass bearing - 0.2 kg

• Model Number:BEAS 012042-2RS
• Inner Diameter：12mm Outer Diameter：42mm Width：25mm
• Type：Thrust Ball Bearings
• Update date：2023-03-26
• Application:glass,root canal filling,office equipment,electrocardiograph,metallurgy,agricultural testing and analysis equipment and related,equipment,position switch,small diesel generators,security equipment,Automation
• Similar models:SKF BEAS012042-2RZ SKF BEAS012042-2RS
• BEARING POWER International Trading Co.,Ltd. specialize in BEAS012042-2RS products，there is large inventory of SKF BEAS 012042-2RS . We has been built up long-term cooperation with SKF company, could make a bulk order of the BEAS 012042-2RS Which SKF BEAS012042-2RS is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
